A3 - SYSTEM - EXP
Non-accessible self-protected roof

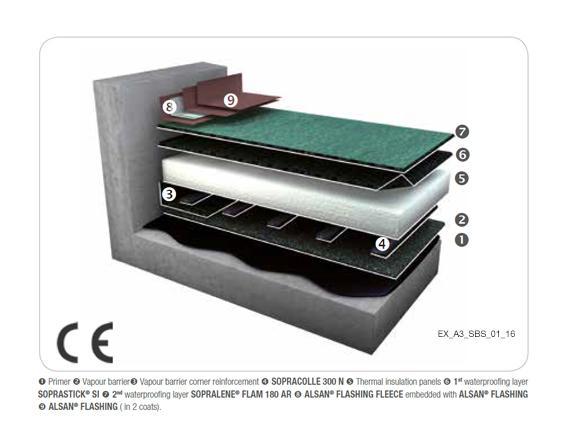

| CE Marking Technical Approval | SOPRALENE® STICK | ||
|---|---|---|---|
| Bilayer SBS System | |||
| 2nd layer | |||
| 1st self-adhesive layer | |||
| Total thickness | 5.5 mm | ||
| Performance | F 5 I 5 T 2 | ||
Soprema advices:
- Upstand variant: Alsan® FLASHING (European Technical Approval ETA-08/0114) will avoid the use of counter flashing protection on parapets. This no-flame system is easy to apply and saves application time.
- A ≥ 2% slope will avoid water stagnation, improve conditions of use and extend service life.
- SOPRASTICK® SI is suitable for high wind areas except hurricane areas where SOPRASTICK® (fully self-adhesive) is used
on top of stabilized thermal insulation. - SOPRAVAP® 3 IN 1 is an optimal solution combining three functions: primer, vapour barrier and insulation adhesive. Do not hesitate to contact our technical team for advice.
website.guides.summary
- TYPE OF WORK non-accessible
- TYPE OF PROJECT Self-protected roof
- SUBSTRATE Reinforced concrete substrate
- THERMAL INSULATION With insulation
- SLOPE 0 - 20%
SYSTEM FILE EX_A3
