SOPRASOLAR FIX ALU PEDESTAL

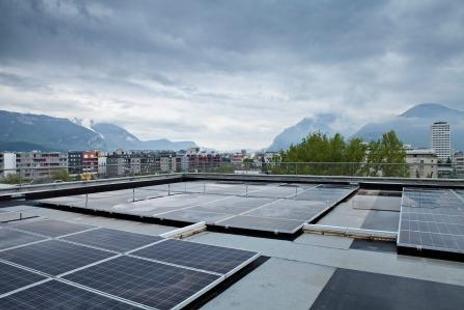

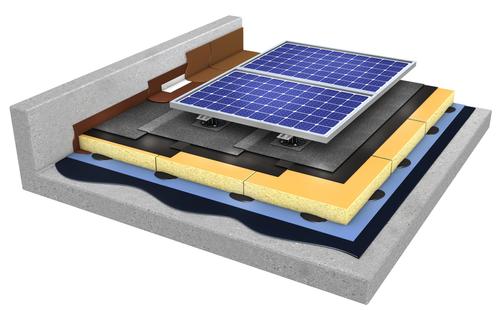

The SOPRASOLAR FIX ALU PEDESTAL is an element of the SOPRASOLAR FIX ALU system (rigid photovoltaic system installed on top of the roof waterproofing membrane).

Description

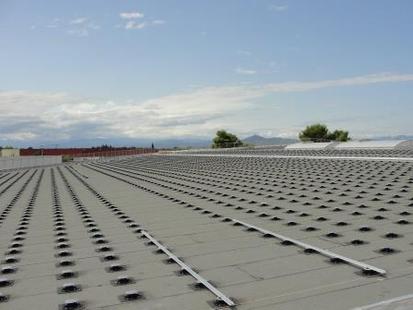

The SOPRASOLAR FIX ALU PEDESTAL consists of a 250 grade weldable flange, a height adjustable pedestal and a top plate.

It allows SOPRASOLAR FIX ALU RAILS to be connected to the waterproofing membrane without perforating it.

Advantages:

  • Patented system
  • Technical Agreement CSTB (FR) (AT 21/15-54)
  • No perforation of the waterproofing system
  • Quick to install
  • Minimal load (approx. 16 kg/m² waterproofing system and insulation excluded)
  • Adjustable height
  • Stainless steel bolting

Implementation

SOPRASOLAR FIX ALU PEDESTALS must be installed in accordance with the recommendations of the SOPRASOLAR FIX ALU Installation Specifications and the installation guide provided by SOPRASOLAR.

Storage

Le stockage des PLOTS SOPRASOLAR FIX ALU doit être réalisé sur un support plan à l’abri des intempéries et des variations importantes de températures.

Conditionnement :
Carton de 40 unités.

Control

  • Technical agreement SOPRASOLAR FIX ALUNr 21/15-54 / CSTB*
*On concrete substrate only

Documents to download

BIM OBJECT

PDFSOPRASOLAR FIX ALU

TECHNICAL DATA SHEET

PDFSOPRASOLAR FIX ALU - PEDESTAL
